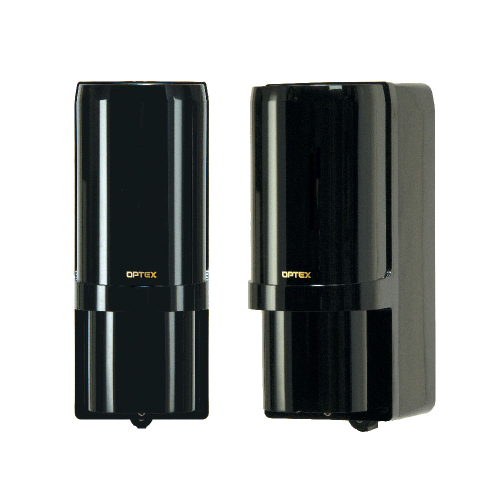

Optex's OPTEX-170 (AX-100TFR(BE)C) battery-powered barriers (not included) are a revolution in the perimeter security industry, offering a significant cost-saving alternative to a traditional wired system.

No trenching or wiring is required, dramatically reducing labor time and installation costs. The unit comes radio ready by housing a transmitter in the multifunctional back box and is compatible with most third party radio systems.

specs

Self-powered double beam infrared barrier
30 meter range
Infrared beam interruption detection
4 channel beam frequency selection
Interruption period: variable between 50, 100, 250, 500ms (4 steps)
Power supply: 3.6 V 13.0 Ah (lithium batteries not included)
Battery life: 3 years
Alarm output: Form C, solid state switch 3.6V DC, 0.01A
2 second (±1) alarm period nominal
Output D.Q.: Form A/B, Solid State Switch 3.6V DC, 0.01A
Low Battery Output: Form A/B, Solid State Switch 3.6V DC, 0.01A
Tamper output for front cover: Form C, 3.6V DC, 0.01A, activates when cover is removed (receiver only)
Backbox tamper output: Form C 3.6V DC, 0.01A, activates when backbox or chassis is removed from installation
alarm indicator
Operating temperature: -20°C ~ +60°C
Ambient humidity: 95% (max.)
Alignment angle: ±90° horizontal, ±5° vertical
Valid for interior or exterior
Degree of protection IP55
Dimensions: 88 (W) x 217 (H) x 162.5 mm
Weight: 1600g
